Shader: Growing Roots

Updated: Jun 21, 2021





I wanted to make a growing roots shader for the tree enemy of my thesis. And I found some cool references(Link) and tutorials( Link1, Link2) on Twitter.


1.Growing effect

I used Opacity Mask to achieve the growing effect. First, I took a float subtracted from the V of Texture coordinates and connected the output to Opacity Mask, in that way I can control the proportion of black and white by adjusting the float. In order to mask out the top of the mesh, I added a OneMinus nodee.



2. Shrink the tip of the roots

I multiplied VertexNormal with a float, then connected the output to Local Vertex Offset to make the vertices move along their normal direction, the mesh could shrink or expand when I adjusting the float value.

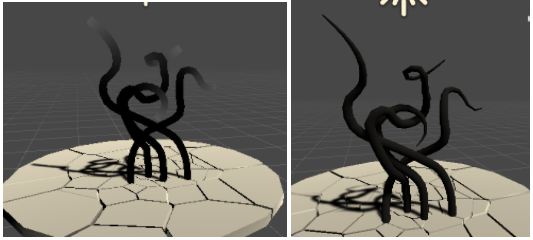

I wanted the end of the cylinders to form the tapering shape, so I gave a Smoothstep to the UV-y. In that way, I can turn the parts that I want to be the tip to white, then it worked as a pinch mask when I multiply it with the mesh shrink and expand effect.



3. Ground Crack

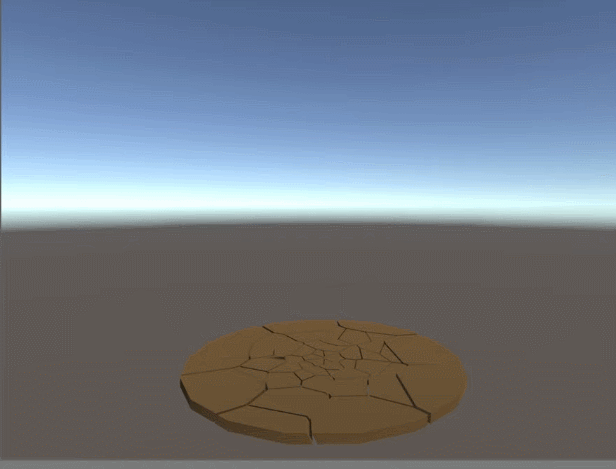

I wanted the ground to crack when the roots grow out of the earth. To do so, I made the ground crack animation in 3ds MAX (the RayFire plugin is really handy to make ground cracks). Then I wrote a script to make the cracking animation only play when the“grow”value is in a certain range.
